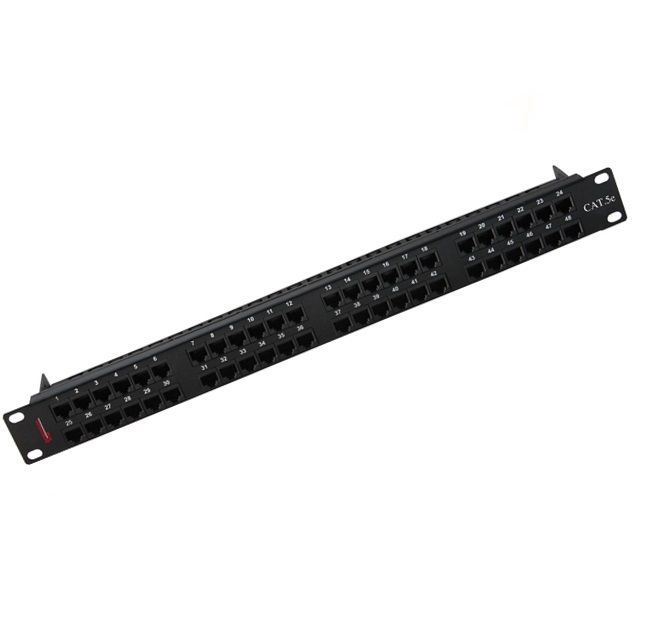

Premium Line Category 5e 2U 48 port Unshielded Patch Panel, Dual Type IDC, Black
Premium-Line Cat. 5e Unshielded Patch Panel complies with ANSI/TIA-568-C.2, ISO/IEC 11801 and EN 50173-1 Class D specifications. The complete module complies with EU RoHS directive.
The construction is in standard 1U 19” size, suits for all 19” rack installation. The main metal frame and rear back cover made by SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in 20 ports (1U) 48 ports (2U).
Physical Characteristics | |
Jack | Phosphor bronze, 50μ inch gold plating over nickel in contact area |
IDC | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
|
All the products are verified to the electrical characteristics required in the directive.
