Cat. 5e 0.5U Unshielded

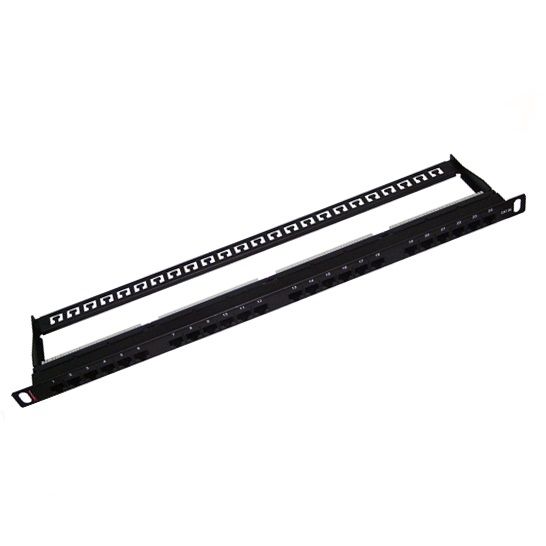

Category 5e 0.5U Patch Panel with one Cable management Bar
Premium-Line Category 5e 19” high-density patch panel 24 port in 0.5U could significantly expand your capacity by space-saving in the rack! For any cross-connect rack and HC networking rack in the datacenter or TR, it’s the ideal design to achieve more flexible deployment and also anytime available for end subscribers’ expansion. Two pieces of easy click-in cable management bar at the backside are high strength affordable. The compact design saving physical space in the rack and combines with its quality headroom margin performance, the panel is your ideal budget-saving and competitive solution to others.
The complete module complies with EU ROHS directive.
Physical Characteristics | |
Jack | Phosphor bronze, 50μ inch gold plating over nickel in the contact area |
IDC | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non-condensing |
Applications
|
All the products are verified to the electrical characteristics required in the directive.
Category 5e 0.5U Unshielded Patch Panel
PART NO. | DESCRIPTION | PACKING SIZE |
175182412 | Premium-Line Category 5e 0.5U Patch Panel with one Cable management Bar, 24 Port, Black | 52×24×34 cm |
