Cat. 5e 1U w/ Labeling

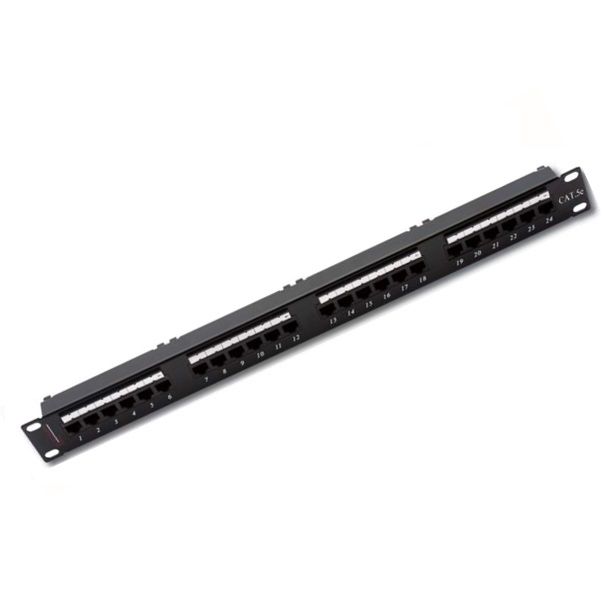

Category 5e 24 port Unshielded Patch Panel with Labeling Holder, dual type IDC
Physical Characteristics | |
Jack | Phosphor bronze, 50μ inch gold plating over nickel in contact area |
IDC | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice, Video and other applications
All the products are verified to the electrical characteristics required in the directive.
Category 5e Labeling Unshielded Patch Panel
PART NO. | DESCRIPTION | PACKING SIZE |
175722412 | Premium-Line Category 5e 24 port Unshielded Patch Panel with Labeling Holder, dual type IDC, Black | 50×24.5×25.5 cm |
