Premium Line Category 6 unshielded patch panels comply with ANSI / TIA-568-C.2, ISO / IEC 11801 and EN 50173-1 Class E standards. The finished product is EU RoHS compliant.
The design has a standard 19 "0.5U size and can be installed in all 19" racks. The main metal frame is made of SECC material (steel) with a thickness of over 1.0mm. Dual type IDC connectors are compatible with 22-26 AWG solid cable. The product can be easily assembled with 110 or Krone tools. The finished product is available in 24 ports (0.5U) and 48 ports (1U).
Physical characteristics:
Female connector pins | Phosphor Bronze, 50μ inch (1.27μm) gold plated over nickel |
IDC Contacts | 100µ inch (2.54 µm) nickel plating over phosphor bronze |
Electrical characteristics:
Dielectric strength | 1000V RMS for 1 min |
Current strength | 1.5 A Max. |
Insulation resistance | 10 MΩ Min |
Contact resistance | 2 mΩ per contact |
Temperature range | -10 ° C to 60 ° C |
Humidity | 10% ~ 90%; no condensation |
The electrical characteristics of all products comply with the requirements of the standards.
Features:
| Applications:
|
Ordering information:
vendor code | Description |

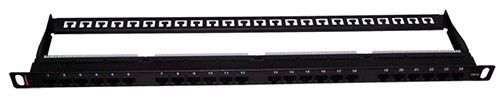

| 176182412 | Patch Panel UTP, 24 Ports 0.5U w / Organizer, Cat 6, Dual Type IDC, Black |
