Cat. 6 0.5U Shielded

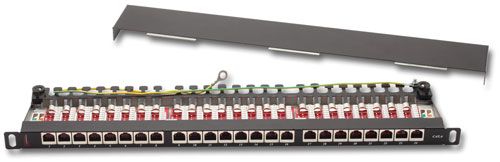

Category 6 24port Shielded Patch Panel, 0.5U, Dual Type IDC
The construction is in standard 19” but in 0.5U size, this is the only difference from Premium-Line 1U shielded patch panel on the purpose of rack space saving. The main metal frame and rear back cover made by SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product available in black or light gray RAL7035 color.
Physical Characteristics | |
Jack | Phosphor bronze, 50μ inch gold plating over nickel in contact area |
IDC | 100μ inch nickel plated over phosphor bronze |
Shielded Cover | 50~60μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
|
All the products are verified to the electrical characteristics required in the directive.
Category 6 0.5U Shielded Patch Panel
PART NO. | DESCRIPTION | PACKING SIZE |
176272412 | Premium-Line Category 6 24port Shielded Patch Panel, 0.5U, Dual Type IDC, Black | 50.5×27.9×27 cm |
