Cat. 6A U/FTP
Patch Cord Category 6A U/FTP
Compliant with Cat.6A standards as:
- ANSI/TIA 568-C.2:2011
- ISO/IEC 11801 Class EA:2011 (Edition 2.2)
- CENELEC EN 50173-1:2011
- CENELEC EN 50288-4-2:2013
- IEC 61935-2:2010 (Edition 3.0)
- IEC 61156-6:2012
- ETL verified

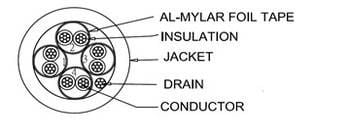

Conductor | Material / size | Bare Copper / 26 AWG | |
Insulation | Material | Foam-Skin PE | |
Inner-Shield | Aluminum-Mylar | an aluminum foil screen around each pair | |
Drain wire | Material | Stranded Tinned Copper | |
Sheath | Material | PVC | LSOH |
Diameter | 6.0± 0.2 mm | 6.0 ± 0.2 mm |
Category 6A U/FTP Patch Cord, LSOH
LENGTH | GREY | GREEN | BLUE | RED | YELLOW |
10m | 182821005 | 182821006 | 182821004 | 182821003 | 182821008 |
Other lengths, colors or PVC cables on request
