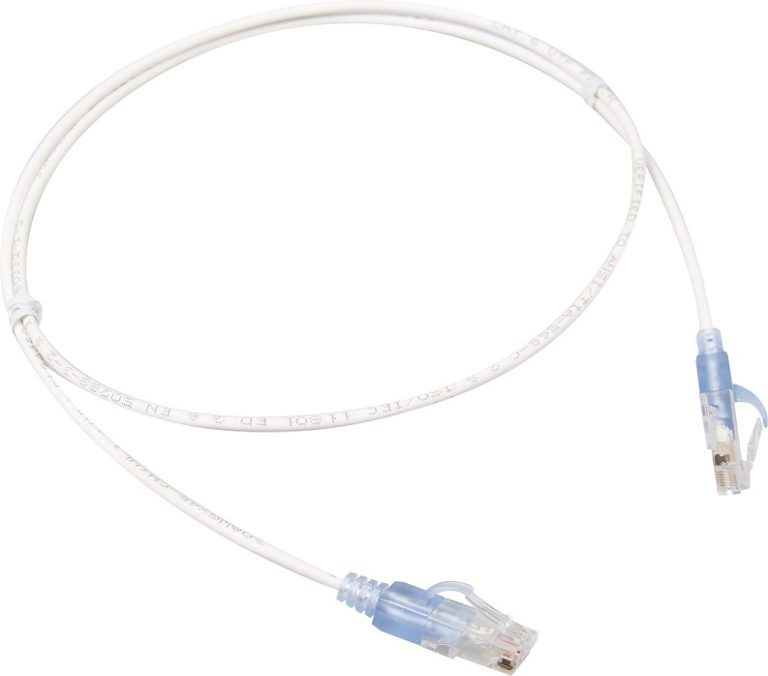

SlimLine Patch Cord Cat. 6 U/UTP
FEATURES:
Category 6 U/UTP SlimLine Patch Cord is using:
- RJ45 contacts 50μ inch gold plated
- Molded snag proof boot
Compliant with Cat.6 standards as:
- ANSI/TIA 568-2.D:2018
- ISO/IEC 11801-1 Class E:2017
- CENELEC EN 50173-1:2018
- CENELEC EN 50288-10-2:2015
- IEC 61935-2:2010 (Edition 3.0)
- IEC 61156-6:2012
Compliant with safety standards as:
- IEC 60332-1-2:2004
- RoHS compliant (EU Directive 2011/65/EC)
CHARACTERISTICS:
Conductor | Material / Size | Bare Copper / 30 AWG |
Insulation | Material | HDPE |
Diameter | 0.55 ± 0.05 mm | |
Sheath | Material | LSOH |
Diameter | 3.1 ± 0.2 mm |
APPLICATION:
- 1000BASE-TX Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice,Video and other applications
ORDERING INFORMATION:
Part No. 18692yyyz
Description Premium Line Cat. 6 U/UTP SlimLine patch cord, LSOH
yyy: length 003: 0.3m, 005: 0.5m, 010: 1.0m, 020: 2.0m
z: color 1: white, 2: black, 3: red, 4: blue, 5: grey, 6: green, 8: yellow
Packing 1pc / PE bag
