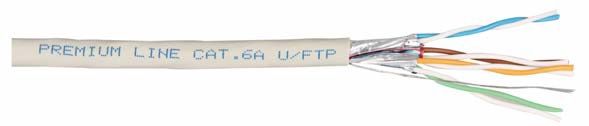

Cable Cat. 6A U/FTP
Standards:
- ISO/IEC 11801 CLASS ES
- CENELEC EN 50288-10-1
- IEC 61156-5 2nd Edition
- ANSI/TIA-568-C.2
- IEC 60332-1
- IEC 60754-2
- ETL Verifed
- RoHS compliant
Application:
- 10G BASE-T Ethernet
- 1000BASE-TX (Gigabit Ethernet)
- 1000BASE-T (Gigabit Ethernet)
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- Voice
Construction
| Conductor | Material / size | Bare Copper / 23 AWG |
| Insulation | Material | Foam-Skin PE |
| Inner-Shield | Aluminum-Mylar | An Aluminum Foil Screen Around Each Pair |
| Sheath | Material | LSOH |
| Diameter | 7.4± 0.3 mm |
Mechanical & Environmental Characteristics
| Bending Radius | ≥ 6D, without load |
| ≥ 8D, with load | |
| Operation Temperature | -20 °C ~+60°C |
| Installation Temperature | 0°C ~+50°C |
| Storage Temperature | -30 °C ~+60°C |
Category 6A U/FTP 600MHz
| PART NO. | DESCRIPTION | PACKING SIZE |
| 209642225 | Premium-Line Category 6A U/FTP Installation Cable, 500m reel, LSOH, 600 MHz | 45(O.D)×29.8(H) cm |
| Freq | Insertion Loss | NEXT | PS NEXT | ACR-F | PS ACR-F | Return Loss | ||||||
| (MHz) | (dB) | (dB/100m) | (dB) | (dB) | (dB) | (dB) | ||||||
| Nor. | Typ. | Nor. | Typ. | Nor. | Typ. | Nor. | Typ. | Nor. | Typ. | Nor. | Typ. | |
| 1.0 | 2.1 | 1.7 | 74.3 | 100.0 | 72.3 | 97.0 | 67.8 | 90.0 | 64.8 | 87.0 | 20.0 | 30.0 |
| 4.0 | 3.8 | 3.4 | 65.3 | 100.0 | 63.3 | 97.0 | 55.8 | 90.0 | 52.8 | 87.0 | 23.0 | 33.0 |
| 10.0 | 5.9 | 5.0 | 59.3 | 100.0 | 57.3 | 97.0 | 47.8 | 90.0 | 44.8 | 87.0 | 25.0 | 35.0 |
| 16.0 | 7.5 | 6.4 | 56.2 | 100.0 | 54.2 | 97.0 | 43.7 | 90.0 | 40.7 | 87.0 | 25.0 | 35.0 |
| 20.0 | 8.4 | 7.1 | 54.8 | 100.0 | 52.8 | 97.0 | 41.8 | 90.0 | 38.8 | 87.0 | 25.0 | 35.0 |
| 31.25 | 10.5 | 9.0 | 51.9 | 100.0 | 49.9 | 97.0 | 37.9 | 90.0 | 34.9 | 87.0 | 23.6 | 33.6 |
| 62.5 | 15.0 | 13.0 | 47.4 | 100.0 | 45.4 | 97.0 | 31.9 | 85.0 | 28.9 | 82.0 | 21.5 | 31.5 |
| 100.0 | 19.1 | 16.8 | 44.3 | 98.0 | 42.3 | 95.0 | 27.8 | 81.0 | 24.8 | 78.0 | 20.1 | 30.1 |
| 200.0 | 27.6 | 23.9 | 39.8 | 93.0 | 37.8 | 90.0 | 21.8 | 77.0 | 18.8 | 74.0 | 18.0 | 28.0 |
| 250.0 | 31.1 | 28.5 | 38.3 | 92.1 | 36.3 | 89.1 | 19.8 | 76.0 | 16.8 | 73.0 | 17.3 | 27.3 |
| 300.0 | 34.3 | 29.2 | 37.1 | 91.0 | 35.1 | 88.0 | 18.3 | 71.0 | 15.3 | 68.0 | 16.8 | 27.3 |
| 400.0 | 40.1 | 33.4 | 35.3 | 89.1 | 33.3 | 86.1 | 15.8 | 68.1 | 12.8 | 65.1 | 15.9 | 27.3 |
| 550.0 | 47.6 | 37.2 | 33.2 | 87.3 | 31.2 | 84.3 | 13.0 | 33.2 | 10.0 | 63.1 | 14.9 | 27.3 |
| 600.0 | 50.0 | 42.5 | 32.7 | 86.1 | 30.7 | 83.1 | 12.3 | 60.0 | 9.3 | 57.0 | 14.6 | 27.3 |
