TECHNICAL SPECS
- Model Name:

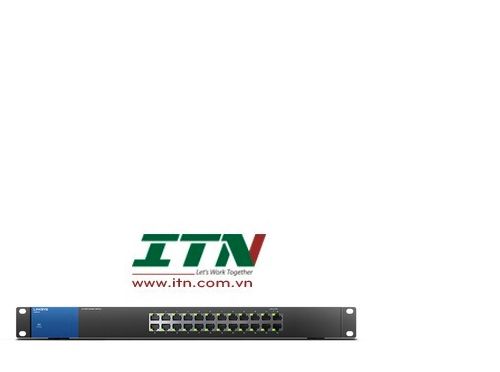

LGS124 - Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3az
- Ports:
24 Gigabit Ethernet (10/100/1000) Ports - LEDs:
Link, speed, and activity indicators - Performance:
- Full line rate and forwarding rate of 64B frame at:
- 1.488Mpps for 1000M port
- 0.1488Mpps for 100M port
- 0.01488Mpps for 10M port
- MAC Address Table Size:
8,000 entries - Bandwidth:
48 Gbps (non-blocking) - Fans:
None - Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables - Dimensions (LxWxH):
440 x 201 x 44mm - Weight:
2.290 kg - Power:
110–240 VAC, 50/60 Hz
- Power Consumption:
3.62W/11.89W - Power Consumption:
4.39 W / 14.16 W - Power Saving:
Cable connected detection, sleep mode - 2 Monitors:
Internal - Operating Temperature:
0–50°C - Storage Temperature:
-40–70°C - Operating Humidity:
10–90% (non-condensing) - Storage Humidity:
10–90% (non-condensing) - Mounting:
Rack - Quality Of Service:
802.1p and DSCP - Regulatory Compliance:
FCC Class A, CE - Warranty and Support:
5 Year Warranty
