FTTX distribution box
The optical network unit to the single house, floor distribution of residence building and upon head
power utility installation, always requires compact design, easy installation and operation, as well as weather durable characteristics.
Premium-Line FTTH distribution box is aim designed for multi-purpose applications in FTTH projects, the dual layer design supports direct termination, and also FTTH distributions via mini splitter built in, available for from 1:2 to 2:32 distributions with Premium-Line FTTH distribution cable. The special designed cable exit fits with FTTH drop flat cable, guarantee the IP grading before and after operations. 4ports, 8ports, 16ports, 24ports, 36port s and 48ports is optional.

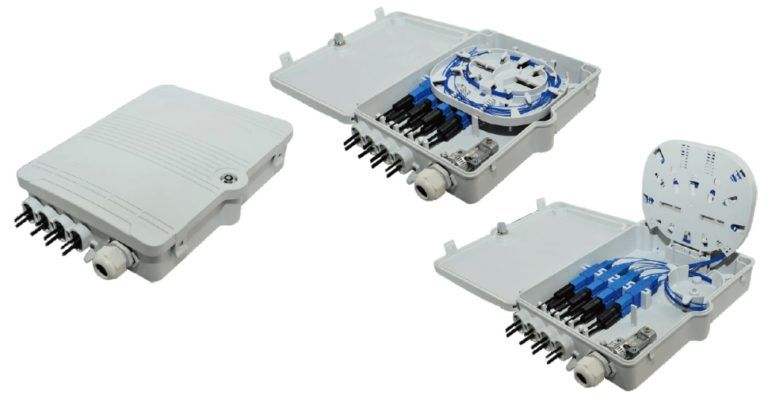

Premium-Line FTTH distribution box, 24ports, without adapters
FEATURES:
- main body made by ABS, inner structure made by PC
- Anti-UV and water proof design for both indoor and outdoor uses
- accommodates splitters and up to SC simplex or LC duplex adapters
- 2* cable input slots with glands protection(diameter: 5-15mm)
- 24 ways cable outlet ports for distribution (diameter: 5mm)
- IP 55 protection level, all weather use
- size: 330mm x 225mm x 90mm (H x W x D)
Premium-Line FTTH distribution box, 24ports, without adapters
| PART NO. | DESCRIPTION |
| 253211240 | Premium-Line FTTH distribution box, 24ports, SC Simplex Type, without Adapters |
| 253224240 | Premium-Line FTTH distribution box, 24ports, LC Duplex Type, without Adapters |
