Indoor Tight Buffer Distribution

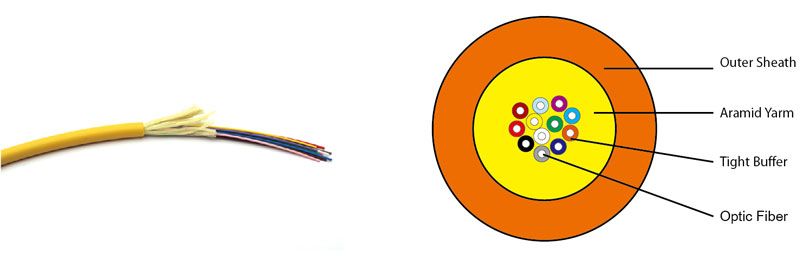

The 900μm tight buffer fibers are distributed in the center of the cable. The aramid yarn as strength member surround the fibers, provides excellent tensile strength when it’s in installation, the cable is completed with a LSOH jacket.
As the classical premise backbone cabling fiber optic cable, the compact construction is ease for field installation.
Structure & Environmental Characteristics
Tight Buffer | Material | LSOH |
Peripheral Strength Member | Material | Aramid Yarn |
Sheath | Material | LSOH |
Color | Yellow, Orange, Aqua | |
Operating Temperature | -20°C ~ +60°C | |
Storage / Transport Temperature | -20°C ~ +60°C | |
Installation Temperature | -5°C ~ +50°C |
Fiber Count | Outside Diameter (mm) | Nominal Cable Weight (kg/km) | Crush Resistance N/100mm | Tensile Load | Bend Radius | ||
Short Term (N) | Long Term (N) | Static (mm) | Dynamic (mm) | ||||
4 | 4.8 | 18 | 1000 | 200 | 20D | 10D |
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Purple | Pink | Aqua |
No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Blue w/Black Tracer | Orange w/Black Tracer | Green w/Black Tracer | Brown w/Black Tracer | Grey w/Black Tracer | White w/Black Tracer | Red w/Black Tracer | Black w/Black Tracer | Yellow w/Black Tracer | Purple w/Black Tracer | Pink w/Black Tracer | Aqua w/Black Tracer |
Indoor Tight Buffer Distribution Fiber Optic Cable, LSOH
Number of Fibers | 9/125 | 50/125 | 62.5/125 | 50/125(OM3) | 50/125(OM4) |
4 | 261322004 | 261332004 | 261312004 | 261342004 | 261392004 |
