Outdoor Glass Strength Uni-tube

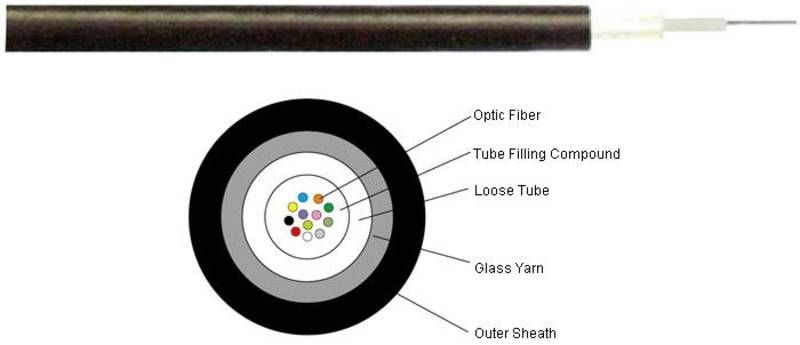

The optic fibers are positioned in a loose tube made of high modulus plastics. The tube is filled with filling compound to give the fibers excellent water proof performance. The glass yarn between the jacket and loose tube is a strength member and provides rodent resistance. Cable is completed with a polyethylene (PE) jacket.
Structure & Environmental Characteristics
Loose Tube | Material | PBT |
Filling Compound | Material | Thixotropic Jelly |
Peripheral Strength Member | Material | Glass Yarn |
Sheath | Material | PE / Black |
Operating Temperature | -20°C to +60°C | |
Storage / Transport Temperature | -20°C to +60°C | |
Installation Temperature | -5°C to +50°C |
Fiber Count | Outside (mm) | NominalCable Weight (kg/km) | Crush Resistance N/100mm | Tensile Load | Bend Radius | ||
Short Term (N) | Long Term (N) | Static (mm) | Dynamic (mm) | ||||
2~12 | 6.7 | 55.5 | 1000 | 1000 | 400 | 10D | 20D |
14~24 | 6.7 | 67 | 1000 | 1000 | 400 | 10D | 20D |
Compliant Standard:ITU-T G651 / ITU-T G652 D, ANSI/TIA B.3, IEC-794.
Outdoor Glass Strength Uni-tube Fiber Optic Cable, PE
Number of Fibers | 9/125 | 50/125 | 62.5/125 | 50/125(OM3) | 50/125(OM4) |
8 | 263123008 | 263133008 | 263113008 | 263143008 | 263193008 |
