Figure 8, 9/125um G652D
Description:
48 Fibers

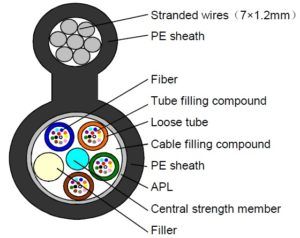

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.
Features:
- High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
Compliances:
144 Fibers
- ITU-T G652D
- ANSI/TIA 568-C.3
- IEC-794
- RoHS
Applications:
- Suitable for direct buried and duct installation
- Outside plant environments
Ordering information:
Part No. 269223xxx
Description Fiber optic figure 8 cable, multi-tube, APL, SM9/125, PE
xxx, fiber count 004 / 006 / 008 / 012 / 024 / 036 / 048 / 072 / 096 / 144
Structure & Environmental characteristics:
Loose Tube | Material | PBT |
Peripheral Strength Member | Material | Steel Wire / 7*1.2mm |
Wrapping | Material | Aluminum Polyethylene Laminate |
Sheath | Material / Color | PE / black |
Operating temperature range | -40oC to +70oC | |
Storage / transport temperature range | -40oC to +70oC | |
Installation temperature range | -40oC to +70oC |
Fiber Count | Tubes | Fillers | Fiber
Count | Outside
Diameter (mm) | Cable Weight (kg/km) | Tensile Load | Crush Load | ||
Short Term | Long Term | Short Term | Long Term | ||||||
(N) | (N) | (N) | (N) | ||||||
8C | 2 | 3 | 4 | 5.6*9.0*16.6 | 161 | 1500 | 600 | 1000 | 300 |
