Premium Line Category 5e gel-filled cable is ideal for outdoor applications. Each conductor is made of 24AWG copper for tensile strength, and a semi-liquid gel filler around each pair resists moisture penetration and protects the inner insulation from adverse weather conditions. The cable is covered with a durable polyethylene jacket, thanks to which it is able to withstand all weather conditions in the temperature range from -40 ° C to + 60 ° C.

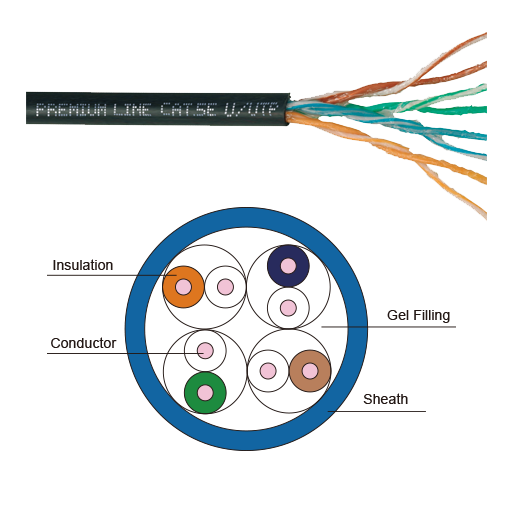

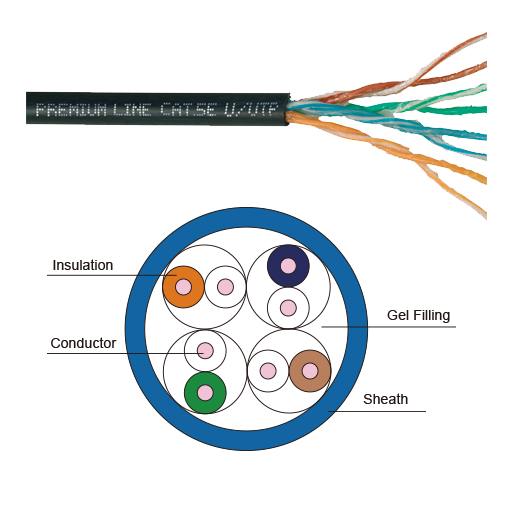

Design:
Conductor | Material / Size | Copper / 24AWG |
| Insulation | Material | HDPE (Low-pressure polyethylene) |
Shell | Material | PE (Polyethylene) |
Gel filler | NUFLEX RE-4088 | |
Mechanical and environmental characteristics
Bending radius | ≥ 4D, no load |
Operating temperature | -40 ° C ~ + 60 ° C |
Installation temperature | -10 ° C ~ + 50 ° C |
Storage temperature | -50 ° C ~ + 70 ° C |
Standards:
- ANSI / TIA-568-C.2
- ISO / IEC 11801 ED.2
- CENELEC EN 50173-1
- CENELEC EN 50288-3-1
- RoHS Directive (EU Directive 2011/65 / EC)
- UKRSEPRO Certificate
Applications:
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T
- Voice, ISDN
Ordering information:
vendor code | Description |
| 725143112 | U / UTP twisted pair cable for outdoor installation, gel filler up to -40 ° C, cat.5E, PE, black |
