TECHNICAL SPECS
- Model Name:

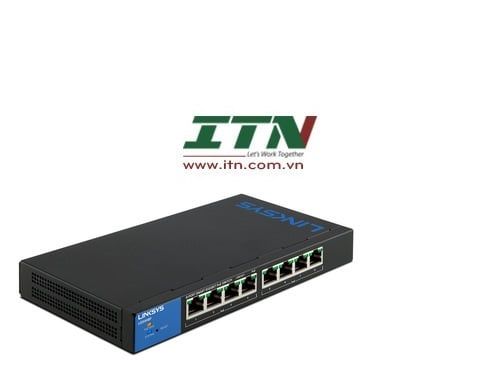

LGS308P - Network Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.3az
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1d
- IEEE 802.1q/p
- IEEE 802.1X
- Number of Ports with PoE+ Support:
8 - Memory:
128 MB - LEDs:
System (blue), Link/Act/PoE (green/green) - System Power Consumption without PoE+:
- 110V:9.95W
- 220V:10.17W
- Forwarding Rate:
11.90 Mpps - Switching Capacity:
16 Gbps - MAC Address Table Size:
8K - Jumbo Frame (FE, GE):
9K - Dimensions (LxWxH):
210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.) - Weight:
0.562 kg (1.23 Ibs.) - Power Dedicated to PoE+:
72W - Power Input:
- 100–240V
- 50-60 Hz
- (1.5A max)
- Operating Temperature:
0 to 50°C (32 to 122°F) - Storage Temperature:
-40 to 70°C (-40 to 158°F) - Operating Humidity:
10 to 90% RH - Storage Humidity:
10 to 90% RH (non-condensing) - Spanning Tree:
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree - Link Aggregation:
IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group - VLAN:
Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
- Number of VLANs Supported:
128 active VLANs (4,096 range) - Auto Voice VLAN:
VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels - IGMP Snooping:
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups - HOL Blocking Prevention:
Head of line (HOL) blocking prevention - Port Mirroring:
Traffic on multiple ports can be mirrored to another port for analysis with a network analyzer - Security Features:
- 802.1x Radius authentication
- DHCP snooping
- IP-MAC binding
- Port security supports limited dynamic lock and locked MAC address
- Management access control
- Storm Control:
Broadcast, flooding, and multicast - RMON:
Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis - Management Interface:
- HTTP
- HTTPS
- Other Management:
Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP - SNMP:
- Version 1
- Version 2c
- Firmware Upgrade:
- Web Browser (HTTP/HTTPS)
- TFTP
- QoS - Class of Service:
Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based - Copper FE/GE Ports (RJ45):
g1–g8 - Green Power Mode:
EEE+, Short Reach + Energy Detect - QoS - Priority Levels:
4 hardware queues - QoS - Scheduling:
Priority queuing and weighted round robin (WRR) - Total System Ports:
8GE
