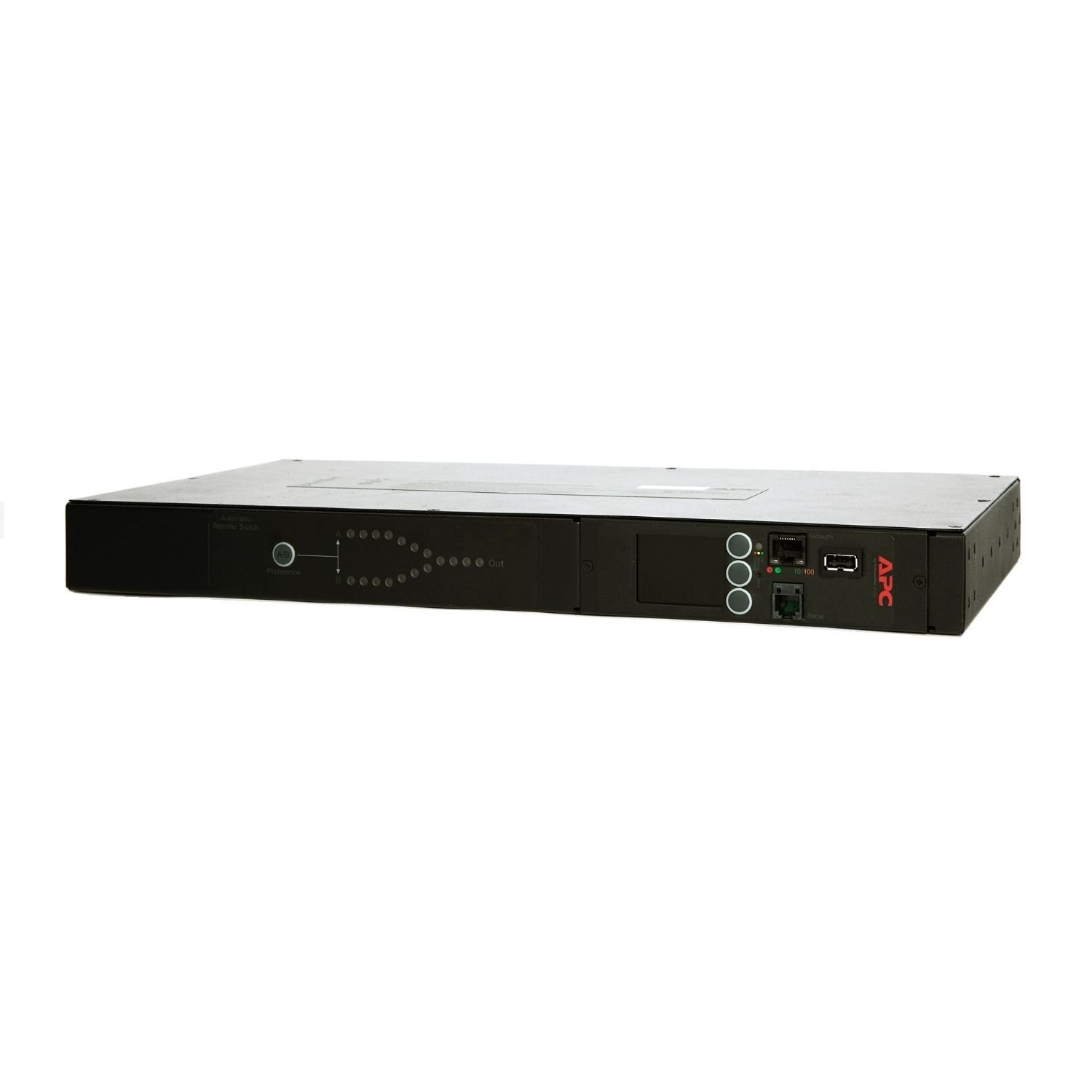

APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 230 V AC 1 phase |
|---|---|
| product or component type | Automatic transfer switch |
| Main Output Voltage | 230 V AC 1 phase |
| Input Connection Type | IEC 60320 C20 16 A 2P + E |
| number of rack unit | 1U |
| provided equipment | Mounting hardware Rack mounting brackets Serial configuration cable |
| colour | Black |
|---|---|
| height | 4.4 cm |
| width | 43.2 cm |
| depth | 23.6 cm |
| net weight | 3.74 kg |
| mounting location | Front |
| mounting preference | No preference |
| mounting mode | Rack-mounted |
| mounting position | Horizontal |
| network frequency | 50/60 Hz |
|---|---|
| [In] rated current | 20 A |
| permissible voltage | 207…253 V |
| Max line current | 20 A |
| input current limits | 20 A |
| Load capacity | 3700 VA |
| number of power socket outlets | 8 IEC 60320 C13 10 A 2P + E 1 IEC 60320 C19 16 A 2P + E |
|---|---|
| number of power socket outlets | 9 |
| protection type | Without circuit breaker |
| power cable length | 2.44 m |
| product certifications | CUL listed CE UL listed |
|---|---|
| standards | EN 55022 class A FCC part 15 class A |
| ambient air temperature for operation | -5…45 °C |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 0...10000 ft |
| ambient air temperature for storage | -25…65 °C |
| storage Relative Humidity | 5…95 % |
| storage altitude | 0…15240 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Package 1 Length | 35.6 cm |
| Number of Units in Package 1 | 1 |
| Package 1 Width | 60 cm |
| Package 1 Height | 11.4 cm |
| Package 1 Weight | 5.51 kg |
| Warranty | 2 years repair or replace |
|---|
