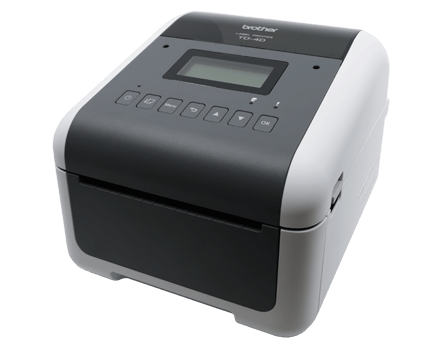

- Máy in nhãn Brother TD-4550DNWB in bằng công nghệ nhiệt với độ phân giải 300dpi.
- Tốc độ in: 152mm per second.
- Kết nối: USB version 2.0 (full speed) Type B, Bluetooth, Wifi.
- Bộ nhớ: 256MB (RAM), 64MB (Flash).
- Kích thước (W x D x H): 180 x 155 x 224 mm.
- Trọng lượng: 2.08kg.
Đặc tính kỹ thuật
| Printing | |
| Print technology | Direct thermal |
| Print speed | 152mm per second |
| Resolution | 300dpi |
| Maximum print width | 108.4mm |
| Minimum print length | Continuous: 6.4mm, Peeler: 12.7mm, Cutter: 20mm, Tear: 27mm |
| Maximum print length | 3000mm |
| Media sensor type | Gap (Transmissive), Bar (Reflective) |
| Media sensor location | Gap (Fixed), Reflective (Adjustable) |
| Tear off release mode | Standard: Continuous, Tear off, Optional: Peeler, Cutter |
| Media | |
| Media types | Wristbands, Continuous, Die cut, Fan fold, Perforated, Tag |
| Media thickness | 0.058mm - 0.279mm (0.002 inch to 0.011 inch) |
| Media width | 19mm - 118.11mm (0.75 inch to 4.65 inch) |
| Media length | 6.4mm - 3000mm (0.25 inch to 118.11 inch) |
| Diameter (Max) | 127mm (5 inch) |
| Core Diameter (Max) | 12.7mm (0.5 inch) |
| Connectivity | |
| USB | USB version 2.0 (full speed) Type B |
| USB host capability | Yes |
| Serial | Serial RS232C (DB9 male) |
| Wired LAN | 10/100BASE-TX |
| USB host port | Yes |
| Bluetooth | Version 4.2 |
| Bluetooth profile | SPP, OPP, HCRP Bluetooth Classic, GATT (Bluetooth Low Energy) |
| Wireless LAN | 802.11a/b/g/n |
| Wireless LAN security | Authentic method (encryption scheme) Infrastructure modeOpen system (None/ WEP64/WEP128) Common key authentication (WEP) WPA/WPA2-PSK (TKIP+AES), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TLS (TKIP/AES), EAP-TTLS (TKIP/AES) Authentic method (encryption scheme) Wireless direct mode WPA2-PSK (AES) |
| MFI support | Yes |
| AirPrint | Yes |
| Wired LAN | Yes |
| General | |
| Control panel | 7 button, 3 LED |
| LCD type | Mono |
| Power | |
| AC Power adapter | AC Power adapter (100 - 240V, 50/60Hz) |
| Software | |
| Operating systems support | Windows 7 / 8 / 8. 1 / 10 Windows Server 2008 / 2008R2 /2012 /2012R2 / 2016 Linux |
| Print commands | P-touch Template, ESC/P, Raster, ZPL II emulation, CPCL emulation |
| Barcode symbologies | Linear: CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode 2-dimensional: QR Code (model 1, model 2, micro QR), Maxicode, PDF417 (Standard, Truncate, MicroPDF417) Data Matrix (ECC200 Square, ECC200 Rectangular) Aztec |
| Memory | |
| RAM | 256MB |
| Flash | 64MB |
| Environmental | |
| Operating temperature | Operate: 5°C to 40°C |
| Operating humidity | 20% - 85% (No condensation, Max wet bulb temperature: 27°C) |
| Storage temperature | -20°C to 60°C |
| Storage humidity | 10% - 90% (No condensation) |
| Dimension & Weight | |
| Dimension (mm) | 180mm (W) x 155mm (D) x 224mm (H) |
| Weight | 2.08kg |
