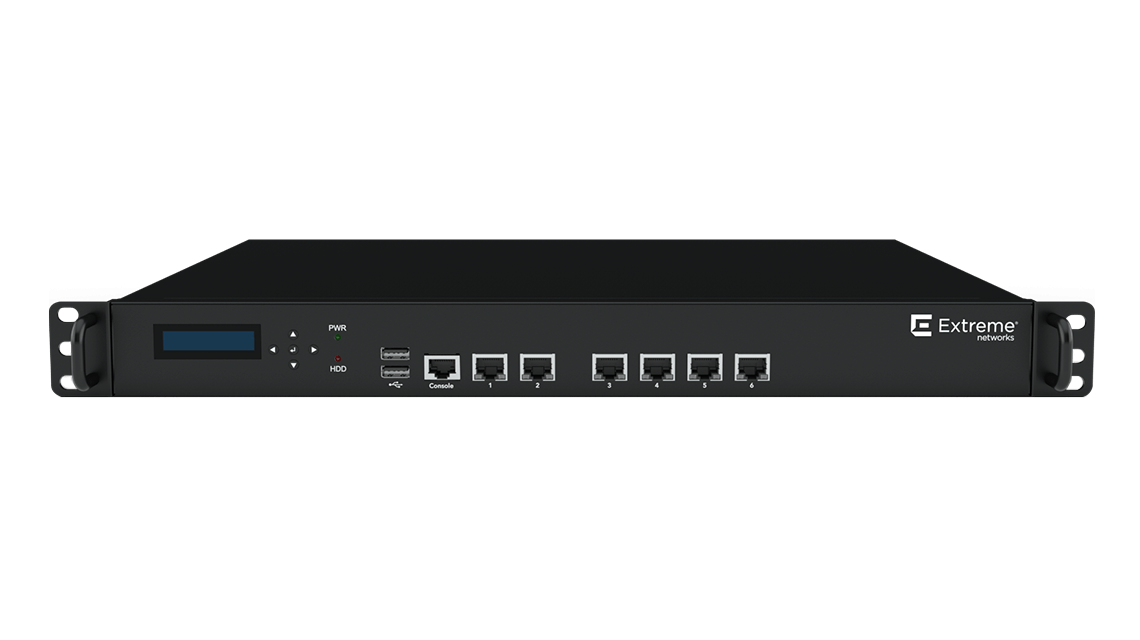

Bộ chuyển mạch NX-5500-100R0-WR

Bộ điều khiển Wire/Wireless NX5500 thế hệ mới phù hợp với các doanh nghiệp, cơ quan có quy mô nhỏ và vừa. Bộ điều khiển NX5500 được tích hợp các dịch vụ bảo mật như wired/wireless firewall, WIPS, IPsec VPN gateway, AAA radius Server and bảo mật truy cập captive web portal. Tính năng smart RF nâng cao chất lượng vùng phủ, giảm tối đa nhiễu RF, tự động điều chỉnh công suất bù sóng khi lỗi một hoặc vài AP.





Powered by the Advanced WiNG 5 Operating System The ExtremeWireless WiNG 5 OS provides the advanced intelligence required to create the “fully network-aware” WLAN, allowing every piece of infrastructure in your wireless network to work together to route every transmission as efficiently as possible. Specifications Product Features NX 5500 Physical Characteristics Dimensions 1U, rack-mountable 16.93 in. W x 1.74 in. H x 12.63 in. D 430 mm W x 44.2 mm H x 320.7 mm D Weight 10 lb./4.5 kg Memory 4 GB RAM Storage 32 GB solid-state drive for firmware image and critical data Power Supply 100 Watts, 100-240V AC PSU Power Consumption 30 Watts Capacity and Performance APs Supported (Local bridging) 512 APs Supported (Extended VLAN) 256 Data Throughput 6 Gbits/sec. Crypto Throughput 2 Gbits/sec. RF Domains 512 WLANs 256 Wireless Clients 16K User Environment Operating Temp. 32°F to 104°F/0°C to 40°C Storage Temp. -4°F to 158°F/-20°C to 70°C Operating Humidity 5% to 85% at 104°F/40°C Storage Humidity 5% to 95% at 104°F/40°C Interfaces and Management • Six 10/100/1000 Base-T Ethernet ports (copper) • Two USB 2.0 interfaces • RS-232 serial console (RJ-45) interface • LCD panel with navigation buttons Product SKUs and Licenses NX-5500-100R0-WR NX 5500 Services Platform NX-5500-ADP-16 16x AP License Pack for NX 5500 NX-5500-ADP-64 64x AP License Pack for NX 5500 NX-5500-ADP-128 128x AP License Pack for NX 5500 Deliver best-in-class wireless performance, simplify network control, reduce network costs, and provide your workers with more wireless services to increase business efficiency with the ExtremeWireless WiNG NX 5500 Integrated Services Platform.
