- Features 8 PoE+ ports compliant with 802.3af/at, 116W total PoE power output and an array of PoE management options
- Gigabit Ethernet connections on all ports for fast data transfer speeds
- Selectable RJ45 console port and Micro-USB console port
- Advanced security features including IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- Web/CLI managed modes, SNMP, RMON and Dual Image provide abundant management features
What This Product Does

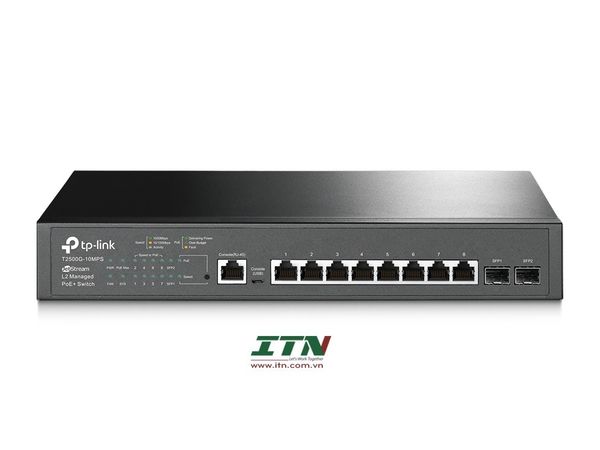

JetStream T2500G-10MPS from TP-Link is a layer 2 managed switch equipped with 8 gigabit RJ45 ports and 2 SFP slots. All RJ45 Ports support the 802.3af/at (PoE+) standard, supplying total PoE power of 116W.
With abundant layer 2 management features supported, the T2500G-10MPS is capable of delivering high throughput to even the most demanding edge-of-network workgroups, while in small networks it can act as a backbone for gigabit switches and high-speed servers. 2 SFP slots provide greater network flexibility.
The T2500G-10MPS is designed exclusively for the networking needs of growing businesses, with an extensive suite of management and security features available. These devices are cost-effective for small and medium-sized businesses, providing ideal solutions for a variety of network scenarios.
IEEE 802.3at/af-compliant Power over Ethernet
The 8 IEEE 802.3af/at-compliant PoE ports and 116W total supply provide ample power to wireless access points, surveillance cameras, IP phones and other PoE supported devices. Compact and flexible, the T2500G-10MPS is ideal for the deployment of wireless access points or IP-based network surveillance cameras.
Abundant L2 Features
A comprehensive list of L2 features are supported, including 802.1Q VLAN, QinQ, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control. LoopBack Detection and Cable Diagnostics help keep the switch running at its best. Meanwhile, IGMP Snooping intelligently forwards multicast streams to only the relevant subscribers, conserving bandwidth. Subscribers are restricted on a port level through IGMP Throttling and Filtering, which prevent access to inappropriate streams.
Secure Networking
IP-MAC-Port Binding, Port Security, Storm Control and DHCP Snooping defend against broadcast storms, ARP attacks, and other threats. In addition, the Access Control Lists feature stops sensitive network resources from being shared by denying packets based on source/destination MAC address, IP address, TCP/UDP ports and VLAN ID. 802.1X authentication used together with a RADIUS server prevents unwanted network access by requesting information prior to authentication. Guest VLAN provides a way for non-802.1X clients to access specified network resources.
Advanced QoS Features
To handle voice, data and video services on one network, T2500G-10MPS employs advanced QoS policies. Administrators can designate the priority of traffic through a variety of functions including Port Priority, 802.1p Priority and DSCP Priority to deliver crystal clear voice calls and jitter-fee video streams. A specialized Voice VLAN is provided to exclusively serve voice applications.
Enterprise Level Management Features
Management is made easy via a web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), with administration traffic protected via SSL or SSH encryptions. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and allows it to send traps when abnormal events occur. Dual Image can be utilized to reduce down time when firmware is being upgraded or downgraded.
