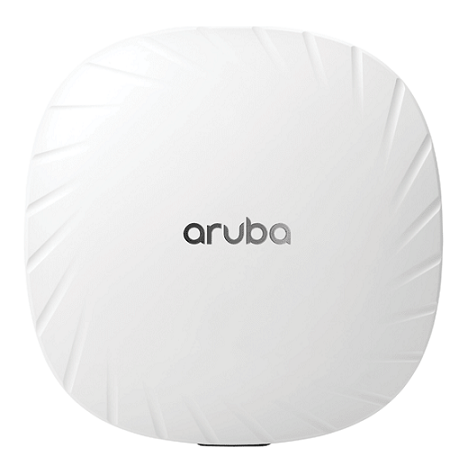

Thiết bị phát sóng không dây Aruba AP-515 RW (Q9H62A) chuẩn AX (Wifi 6) Access Point Indoor

  • Thương hiệu: Aruba
  • Loại: Switch HP Aruba
  • SKU: Q9H62A

Tại Công ty TNHH Thương Mại ITN: 12,500,000₫

Giá thị trường: 14,500,000₫

Tiết kiệm: 2,000,000₫ -14%

Thiết bị phát sóng không dây Aruba AP-515 RW (Q9H62A) chuẩn AX (Wifi 6) Access Point Indoor TECHNICAL SPECIFICATIONSAP typeIndoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMORadio...
  • SHIP TOÀN QUỐC
    SHIP TOÀN QUỐC
    Theo thỏa thuận
  • HÀNG CHÍNH HÃNG
    HÀNG CHÍNH HÃNG
    Cam kết chính hãng 100%
    Phát hiện hàng giả đền 200%
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Theo thỏa thuận
  • ĐẶT HÀNG - TƯ VÂN
    ĐẶT HÀNG - TƯ VÂN
    Hotline: 0329 275 527
    Báo giá dự án, đại lý:
    0908 555 468

Chia sẻ ngay

Thiết bị phát sóng không dây Aruba AP-515 RW (Q9H62A) chuẩn AX (Wifi 6) Access Point Indoor

TECHNICAL SPECIFICATIONS
AP typeIndoor, dual radio, 5GHz 802.11ax 4x4 MIMO and 2.4GHz 802.11ax 2x2 MIMO
Radio 5Ghz- Four spatial stream Single User (SU) MIMO for up to 4.8Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (max)
- Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical)
- Four spatial stream Multi User (MU) MIMO for up to 4.8Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Four spatial stream Multi User (MU) MIMO for up to 2.4Gbps wireless data rate to up to four 1SS or two 2SS HE80 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Radio 2.4Ghz- Two spatial stream Single User (SU) MIMO for up to 574Mbps wireless data rate to individual 2SS HE40 802.11ax client devices or to two 1SS HE40 802.11ax DL-MU-MIMO capable client devices simultaneously (max)
- Two spatial stream Single User (SU) MIMO for up to 287Mbps wireless data rate to individual 2SS HE20 802.11ax client devices or to two 1SS HE20 802.11ax DL-MU-MIMO capable client devices simultaneously (typical)
Maximum number of associated client devicesUp to 512 associated client devices per radio
Maximum number of BSSIDs16 BSSIDs per radio
Supported frequency bands (country-specific restrictions apply)- 2.400 to 2.4835 GHz
- 5.150 to 5.250 GHz
- 5.250 to 5.350 GHz
- 5.470 to 5.725 GHz
- 5.725 to 5.850 GHz
Available channelsDependent on configured regulatory domain
Supported radio technologies- 802.11b: Direct-sequence spread-spectrum (DSSS)
- 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
- 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (for an 80MHz channel)
Supported modulation types- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)
- 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11n high-throughput (HT) supportHT20/40
802.11ac very high throughput (VHT) support:VHT20/40/80/160
802.11ax high efficiency (HE)
support:
HE20/40/80/160
Supported data rates (Mbps):- 802.11b: 1, 2, 5.5, 11
- 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
- 802.11n (2.4GHz): 6.5 to 300 (MCS0 to MCS15, HT20 to HT40)
- 802.11n (5GHz): 6.5 to 600 (MCS0 to MVC31, HT20 to HT40)
- 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)
- 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40)
- 802.11ax (5GHz): 3.6 to 4,803 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)
802.11n/ac packet aggregation:A-MPDU, A-MSDU
Transmit powerConfigurable in increments of 0.5 dBm
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):- 2.4 GHz band: +21 dBm (18dBm per chain)
- 5 GHz band: +24 dBm (18 dBm per chain)
WI-FI ANTENNAS
AntennaFour integrated dual-band downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 4.2dBi in 2.4GHz and 7.5dBi in 5GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 degrees.
- Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the effective per-antenna pattern is 3.8dBi in 2.4GHz and 4.6dBi in 5GHz.
OTHER INTERFACES
Interfaces• E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- PoE-PD: 48Vdc (nominal) 802.3af/at/bt (class 3 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
• E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
DC power interface12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
USB 2.0 host interface (Type A
connector)
Capable of sourcing up to 1A / 5W to an attached device
Bluetooth Low Energy (BLE5.0) and
Zigbee (802.15.4) radio
- Bluetooth 5: up to 8dBm transmit power (class 1) and -95dBm receive sensitivity
- Zigbee: up to 8dBm transmit power and -97dBm receive sensitivity
- Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi
Visual indictors (two multi-color
LEDs):
For System and Radio status
Reset button:Factory reset, LED mode control (normal/off)
Serial console interfaceProprietary, micro-B USB physical jack
Security slotKensington security slot
FLEXIBLE OPERATION AND MANAGEMENT
Controller-less (Instant) modeIn controllerless mode, one AP serves as a virtual controller for the entire network
Mobility Controller modeFor optimized network performance, roaming and security, APs tunnel all traffic to a mobility controller for centrally
managed traffic forwarding and segmentation, data encryption, and policy enforcement.
Management optionsAruba Central (cloud-managed) or Aruba AirWave
POWER SOURCES AND POWER CONSUMPTION
Power Sources: The AP supports
direct DC power and Power over
Ethernet

- The AP supports direct DC power and Power over Ethernet
- When both DC and POE power sources are available, DC power takes priority over POE
- Power sources are sold separately; see the ordering Information section below for details
- When powered by DC or 802.3at (class 4) / 802.3bt (class 5) PoE, the AP will operate without restrictions
- When powered by 802.3af (class 3) PoE and with the IPM feature enabled, the AP will start up in unrestricted  mode, but it may apply restrictions depending on the PoE budget and actual power. What IPM restrictions to apply, and in what order, is programmable.
-  Operating the AP with an 802.3af (class 3 or lower) PoE source and IPM disabled is not supported.

Maximum (worst-case) power
consumption (without / with a USB
device attached):
- DC powered: 16.0W
- PoE powered (802.3af, IPM enabled): 13.5W
- PoE powered (802.3at/bt): 20.8W
- All numbers above are without an external USB device connected. When sourcing the full 5W power budget to such a device, the incremental (worst-case) power consumption for the AP is up to 5.7W (PoE powered) or 5.5W (DC powered).
Maximum (worst-case) power
consumption in idle mode:
12.6W (PoE) or 9.7W (DC).
Maximum (worst-case) power
consumption in deep-sleep mode:
5.9W (PoE) or 1.5W (DC).
