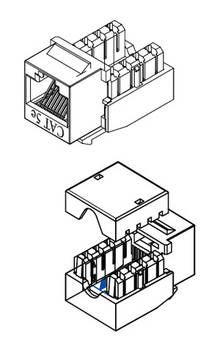

Premium Line Category 5e 90° Unshielded Navigator Keystone Jack, Dual Type IDC, White
Premium-Line 90° unshielded keystone jack is in classical design, the dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
The finished product complies with EU RoHS directive. With its good & stable performance, this module earns the good sales result in the market.
All the products are verified the electrical characteristics required in the directive.
Physical Characteristics | |
| Housing | PC, UL94 V-0 |
| Jack Contact | phosphor bronze, 50μ inch goldplated over nickel |
| IDC Contacts | 100μ inch nickel plated over phosphor bronze |
| IDC Contacts | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
| Dielectric Strength | 1000V RMS for 1min |
| Current Rating | 1.5Amp Max. |
| Insulation Resistance | 10MΩ Min. |
| Contact Resistance | 2mΩ per contact |
| Temperature Range | -10°C to 60°C |
| Humidity | 10%~90%; non condensing |
Applications
| |
All the products are verified to the electrical characteristics required in the directive.
