106211010 - Premium Line Category 6 90° Shielded Keystone Jack, Dual – Công ty TNHH Thương Mại ITN

106211010 - Ổ cắm mạng Cat6 90°, chống nhiễu, chuẩn kép IDC

  • Thương hiệu: PremiumLine Germany
  • Loại: Khác
  • SKU: 106211010

Tại Công ty TNHH Thương Mại ITN: 182,400₫

Giá thị trường: 201,000₫

Tiết kiệm: 18,600₫ -9%

Cat. 6 90° Shielded KJCategory 6 90° Shielded Keystone JackPremium-Line 90° shielded Keystone Jack in fully shielded design, optimizes shield effectiveness protection from EMI. Dual IDC connector can accept 22-26...
  • SHIP TOÀN QUỐC
    SHIP TOÀN QUỐC
    Theo thỏa thuận
  • HÀNG CHÍNH HÃNG
    HÀNG CHÍNH HÃNG
    Cam kết chính hãng
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Theo thỏa thuận
  • ĐẶT HÀNG - TƯ VÂN
    ĐẶT HÀNG - TƯ VÂN
    Hotline: 0329 275 527
    Báo giá dự án, đại lý:
    0908 555 468

Chia sẻ ngay

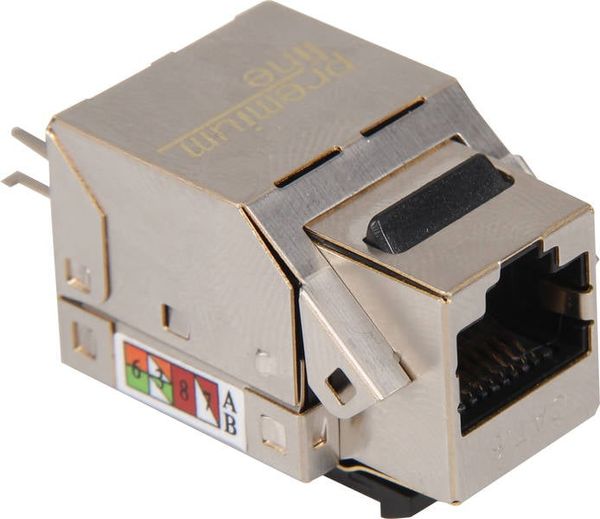

Cat. 6 90° Shielded KJ

Category 6 90° Shielded Keystone Jack

Premium-Line 90° shielded Keystone Jack in fully shielded design, optimizes shield effectiveness protection from EMI. Dual IDC connector can accept 22-26 AWG solid cables, supports T568 A&B wiring, and it uses 110 or Krone tools for termination.

Premium-Line Category 6 shielded Keystone Jack performance conform to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications, supports the channel link bandwidth up to 250MHz.


Physical Characteristics

JackPhosphor bronze, 50μ inch gold plating
 over nickel in contact area
IDC100μ inch nickel plated over phosphor bronze
Shielded Cover50~60μ inch nickel plated over phosphor bronze


Electrical Characteristics

Dielectric Strength1000V RMS for 1min
Current Rating1.5Amp Max.
Insulation Resistance10MΩ Min.
Contact Resistance2mΩ per contact
Temperature Range-10°C to 60°C
Humidity10%~90%; non condensing


Applications

  • 1000BASE-TX Gigabit Ethernet
  • 1000BASE-T Gigabit Ethernet
  • 100BASE-TX Fast Ethernet.
  • 10BASE-T Ethernet.
  • Voice, Video and other applications.

All the products are verified to the electrical characteristics required in the directive.

ORDERING INFORMATION:

Part NO.                        106211010

Description                  Premium Line Cat.6 90° shielded keystone jack, dual type IDC

Packing                         1pc/ PE bag, 40pcs/ box, 400 pcs/carton
