Cat. 6 90° Unshielded KJ

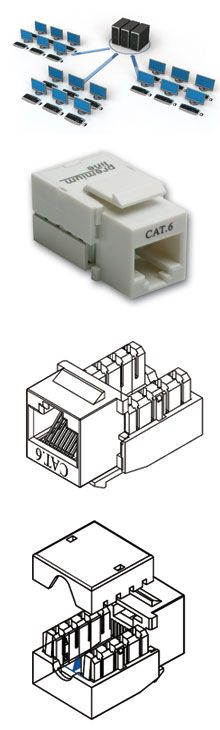

Premium-Line Cat. 6 90° Unshielded Keystone Jack
Premium-Line 90° unshielded keystone jack is in classical design, the dual type IDC accepts 22-26 AWG solid cables, easy terminated with 110 or Krone tools, supports T568 A&B wiring.
With its good & stable performance, this module earns the good sales result in the market.
Physical Characteristics | |
Housing | PC, UL94 V-0 |
Jack Contact | phosphor bronze, 50μ inch gold plated over nickel |
IDC Contacts | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
|
All the products are verified to the electrical characteristics required in the directive.
Category 6 90° Unshielded Keystone Jack
PART NO. | DESCRIPTION | PACKING SIZE |
106111010 | Premium-Line Category 6 90° Unshielded Keystone Jack, Dual Type IDC, White | 53.8×35.2×27 cm |
