Cat module. 5e 180 °

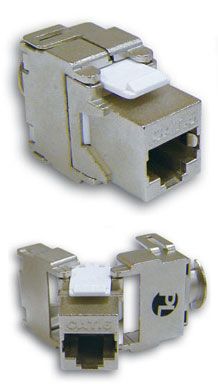

Category 5e 180 ° Keystone Module, Shielded Cast
The Premium Line 180 ° Shielded Cast Keystone Module is specially designed for optimum EMI shielding. Thanks to the self-clamping design, the termination is carried out without additional tools, the installation is carried out in accordance with the T568 A and B standards. The finished product complies with the EU RoHS directive.
Features:
- Performance complies with TIA / EIA-568C.2, ISO / IEC 11801 and EN 50173-1 Category 5e
- die-casting design for optimal EMI protection
- support T568 A&B wiring & easy installation
- toolless design allows all 4 pairs to be mass terminated with a pair of channel locks
- compact design ideal for high density applications
- RoHS compliant
Applications:
- 1000BASE-T Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T
- Voice, ISDN
Physical characteristics:
| Housing | Housing: PC, UL94 V-0 Body: Zinc Die-casting |
| Female connector pins | Phosphor Bronze, 50μ inch (1.27μm) gold plated over nickel |
| IDC Contacts | 100µ inch (2.54 µm) nickel plating over phosphor bronze |
Electrical characteristics:
| Dielectric strength | 1000V RMS for 1 min |
| Current strength | 1.5 A Max. |
| Insulation resistance | 10 MΩ Min |
| Contact resistance | 2 mΩ per contact |
| Temperature range | -10 ° C to 60 ° C |
| Humidity | 10% ~ 90%; no condensation |
he electrical characteristics of all products are in accordance with the requirements of the standards.
Ordering information:
| vendor code | Description | Packaging |
| 105524010 | Premium-Line Module Cat. 5e 180 ° Keystone, Shielded Cast | 53.8 × 35.2 × 27 cm |
