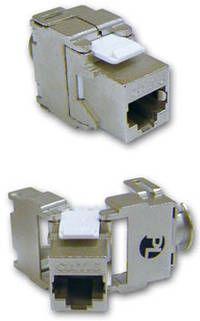

Cat. 6 180° Shielded KJ
Premium-Line 180° shielded Die-casting Keystone Jack in special design for optimal EMI protection. Toolless design does not need additional tools for termination, supports T568 A&B wiring.
All the products are verified to the electrical characteristics required in the directive.
Physical Characteristics | |
Body Material | Housing: PC, UL94 V-0 |
Body: zinc die-casting | |
Jack Contact | phosphor bronze, 50μ inch gold plated over nickel |
IDC Contacts | 100μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
|
Category 6 Shielded Die-Casting Keystone Jack
PART NO. | DESCRIPTION | PACKING SIZE |
106524010 | Premium-Line Category 6 180° Shielded Die-Casting Keystone Jack | 53.8×35.2×27 cm |
