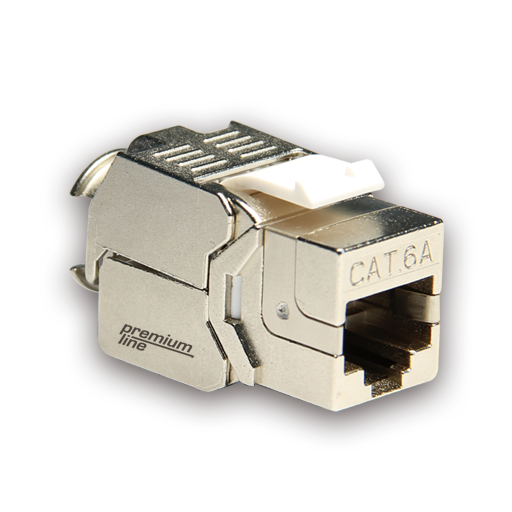

Category 6A 180° Shielded Die-casting Keystone Jack, Slim Type
Premium-Line 180° Category 6A shielded die-casting keystone jack in our new upgrade design, fully achieves the component standard ISO/IEC 11801-1:2017. Extra 30% permanent link headroom margin guaranteed compared to traditional Category 6A products and links, and it’s also the best choice to support IEEE 802.3an 10G applications.
- Category 6A module, ISO/IEC 11801-1:2017 compliant
- Slim design gains the module fitting with all kinds of modular outlet/panel
- Short link 3 connectors ISO 11801 Permanent Link Tested
- Higher performance guarantees high data traffic and even expanding
- 100% test and report attached, quality assured and easy indicate
- For Datacenter horizontal crossconnect fast jumper to Inter-crossconnect
- Fast deployment for expanding and maintenance
- Shutter is optional
Physical Characteristics | |
Jack | Phosphor bronze, 50µ inch gold plating over nickel in contact area |
IDC | 100µ inch nickel plated over phosphor bronze |
Shielded Cover | 50~60µ inch nickel plated over zinc alloy |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MO Min. |
Contact Resistance | 2mO per contact |
Temperature Range | -10°C ~ +60°C |
Humidity | 10%~90%; non condensing |
Application:
- 10GBASE-T Ethernet
- 1000BASE-Tx Gigabit Ethernet
- 1000BASE-T Gigabit Ethernet
- 100BASE-Tx Fast Ethernet
- 10BASE-T Ethernet
- Voice, Video and other applications
Category 6A 180° Shielded Die-casting Keystone Jack
PART NO. | DESCRIPTION | PACKING SIZE |
109824010 | Category 6A 180° Shielded Die-casting Keystone Jack, Slim type | 53.8×35.2×27cm |
109924010 | Category 6A 180° Shielded Die-casting Keystone Jack, Slim type, with shutter | 53.8×35.2×27cm |
