Cat. 6 1U Shielded

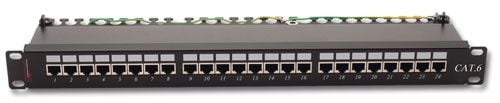

Category 6 24port Shielded Patch Panel, Dual Type IDC, Black
The construction is in standard 1U 19” size, suits all 19” rack installation. The main metal frame and rear back cover are made of SECC material, with the thickness over 1.0mm. Dual type IDC accepts 22-26 AWG solid cable, easy for termination with 110 or Krone tools. The finished product is available in black or light gray RAL7035 color.
Physical Characteristics | |
Jack | Phosphor bronze, 50μ inch gold plating over nickel in contact area |
IDC | 100μ inch nickel plated over phosphor bronze |
Shielded Cover | 50-60μ inch nickel plated over phosphor bronze |
Electrical Characteristics | |
Dielectric Strength | 1000V RMS for 1min |
Current Rating | 1.5Amp Max. |
Insulation Resistance | 10MΩ Min. |
Contact Resistance | 2mΩ per contact |
Temperature Range | -10°C to 60°C |
Humidity | 10%~90%; non condensing |
Applications
|
All the products are verified to the electrical characteristics required in the directive.
Category 6 1U Shielded Patch Panel
PART NO. | DESCRIPTION | PACKING SIZE |
176212412 | Premium-Line Category 6 24port Shielded Patch Panel, Dual Type IDC, Black | 50.5×27.9×27 cm |
