Multipair Cable
All Premium-Line Category 5 UTP multi-pairs installation cable meet or exceed ANSI/TIA/EIA 568A, ISO/IEC 11801, EN 50173 specification. This range of unscreened cables is designed to support Category 3 Link and Channel perfor- mance, with internationally defined Physical and Electrical performance up to 16MHz. All cables comply with RoHS.

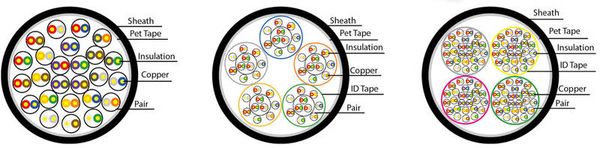

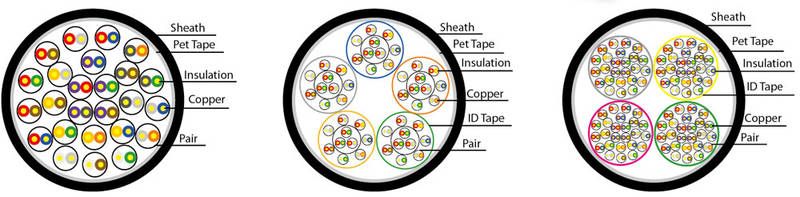

Construction
| | Conductor | 24 AWG Soft Plain Copper |
| Insulation | Polyethylene with color marking on Primary cores to ease identification |
| Sheath | PVC |
| 5 Pairs | 25 Pairs | 50 Pairs | 100 Pairs | |
| 5.7±0.3mm | 11.5+/-1.0mm | 15.0+/-2.0mm | 25.0+/-2.0mm |
Electrical Performance
| Transmission Frequency (MHz) | 1 | 4 | 8 | 10 | 16 |
| NEXT dB/100m | 41.3 | 32.3 | 27.8 | 26.3 | 23.3 |
| Characteristic Impedance | 100 +/- 15 |
| Attenuation dB/100m | 2.6 | 5.6 | 8.5 | 9.7 | 13.1 |
| Structural Return Loss dB/100m | 12 | 12 | 12 | 12 | 9.95 |
| Nominal Velocity of Propagation | >65% |
Mechanical & Environmental Characteristics
| Bending Radius | ≥ 6D, without load |
| ≥ 15D, with load |
| Operation Temperature | -20 °C ~+60°C |
| Installation Temperature | 0°C ~+50°C |
| Storage Temperature | -30 °C ~+60°C |
Category 5 U/UTP Indoor Multipair Cable
| PART NO. | DESCRIPTION |
| 201181225 | Premium-Line Category 5 U/UTP Multipair Cable, 25 pairs, 500 m reels, PVC |
