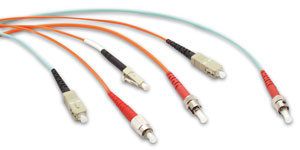

Fiber optic patch cords are suited for equipment jumper cable, cross connects, and work area connections. All patch cords are 100% factory tested to ensure performance to TIA/EIA-568-B-2, ISO 11801:2002 and EN 50173-1 standards. With complete connector range of SC, ST, LC, FC, MTRJ, and also the different mode of fiber cables, consists of various combination for all-field applications.
Connector Mechanical Characteristics & Cord Performance
| Type | FC | ST | SC | LC | MTRJ | |
| Connector Ferrule diameter | 2.5 mm | 2.5 mm | 2.5 mm | 1.25 mm | 2.45 × 2.2mm | |
| IL | ≤0.3 dB | ≤0.3 dB | ≤0.2 dB | ≤0.2 dB | ≤0.3dB | |
| RL | PC | ≥45 dB | ≥45 dB | ≥45 dB | ≥45 dB | ≥45dB |
| UPC | ≥50 dB | ≥50 dB | ≥50 dB | ≥50 dB | ≥50 dB | |
| APC | ≥60 dB | ≥60 dB | ≥60 dB | ≥60 dB v | ≥60 dB v | |
| Working Temperature | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | |
| Repeatability | ≤0.1 dB | ≤0.1 dB | ≤0.1 dB | ≤0.1 dB | ≤0.1 dB | |
| Mechanical Test | Additional Loss |
| Mating Durability: Min.1000 times | ≤0.1 dB |
| Cable Retention:100 N, 120 s | ≤0.2 dB |
| Strength of Coupling Mechanism: 40 N, 120 s | ≤0.1 dB |
| Drop Test: 1.5 m, 5 times | ≤0.2 dB |
| Vibration: 10-500Hz,1.5mm amplitude | ≤0.1dB |
| Temperature Test | Additional Loss |
| Cold Environment Storage: -40 °C, 96 h | ≤0.2 dB |
| High Temperature Storage: +85 °C, 96 h | ≤0.2 dB |
| Temperature Change: -40 °C ~ +85 °C, 20 Cycles | ≤0.2 dB |
| Damp Heat: +25 °C ~ +65 °C, 93%RH,100 h | ≤0.2 dB |
