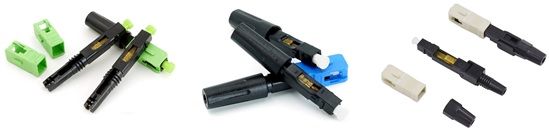

Field Assembly Connector
Description:
Field assembly connector is very easy installable and re-usable field assembly connector which the fiber can be connected/disconnected only by on/off of a small latch attached on connector body, which is composed of two parts of a connector body and a boot it is designed to have the structure and the function to construct the more economic FTTH network.
Features:
- No need to use special Jig for assembling
- Can be reusable about 10 times
- Various cable can be acceptable with one type FAC (Ø250-900μm,1.6×2.0mm，2.0×3.0mm，3.0mm)
Compliances:
- GR-326-CORE
Applications:
- FTTH end user termination
- Patch panels
- Rapid repair of optical networks
- Direct equipment termination
Specification:
| ltem | Data |
| Fiber Polishing Method | UPC Polish, APC Polish |
| Applicable fiber Diameter | Ø 250-900μm, 1.6×2.0, 2.0×3.0, Ø3.0mm(SM, MM50, MM62.5, MM10G) |
| Insertion Loss | ≤0.25 dB |
Return Loss | >45dB (SM fiber SPC polish) >50dB (SM fiber APC polish / When use with Flat cleaver ) >65dB (SM fiber APC polish / When use with Angled cleaver ) >65dB (SM fiber APC polish I When use with Angled cleaver ) |
| Operational Temperature | -40 – +85° |
Pull test | <0.2dB, 4N load( (0.125 fiber) < 0.2dB, 40N load (2x3mm，Ø 3.0mm) |
| Impact test | < 0.2dB, 1.5m, 10 repetitions |
| Durability test | < 0.2dB, 200 repetition of connecting/disconnecting |
| Vibrate test | < 0.2dB, 3 axes 2hr/axis, 1.5mm(peak-peak), 10 to 55Hz(45Hzlmin) |
| Thermal Cycle test | < 0.2dB, -40 to 75 °C, 21 cycles for 168 hours(3.0mm cable) |
| Humidity test | < 0.2dB, 90 to 95%RH, Temp75°C for 168hrs |
ORDERING INFORMATION:
| Part No. | 236x20yzw |
| Description: | Premium Line Field Assembly Connector |
| x, mode | 1:MM 2:SM |
| x, mode | 1:SC/APC 4:LC/APC 6:SC/UPC 9:LC/UPC |
| z, diameter | 3: 0.9mm(only for LC) 4: 2.0mm(only for SC) 5: 3.0mm(only for SC) |
| w, color | 1: beige 4: blue 6: green |
| Packing | 1pc/PE bag, 50pcs/box, 500pcs/carton |
Example:
| 236220654 | Premium Line Field Assembly Connector,SC/UPC,SM,blue,（2.0/3.0mm） |
