As the increasing demand on the communication transmission and exchange capacity, traditional copper based access solutions will not comply with the request of high bandwidth and longer distance. Also, with the maturity fiber optic premise network & protocol implementation and developing, like 1G-EPON, 10G-EPON, GPON, the fiber trend is not a far future trend.
Fiber to the home (FTTH), the optic fiber directly links the multi-subscribers to the LAN with real high bandwidth provision. As the final access to the subscriber, Premium-Line FTTH low bending loss drop flat series cables are aimed design for this high bandwidth network. The excellent optic performance with competitive price is your right choice.

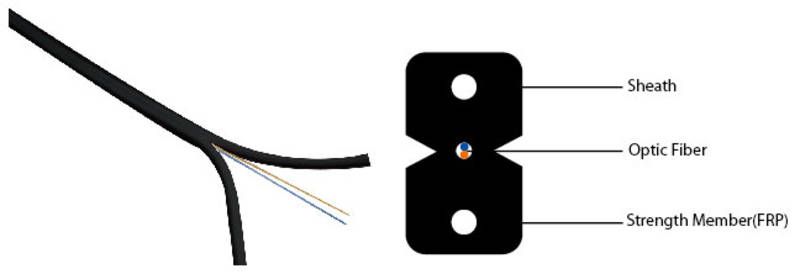

Structure & Environmental Characteristics
| Peripheral Strength Member | Material | FRP |
| Diameter | 0.5 mm | |
| Sheath | Material / Color | LSOH / Black |
| Operating Temperature | -20°C ~ +60°C | |
| Fiber Count | Outside Diameter (mm) | Cable Weight (kg/km) | Tensile Strength | Crush Resistance | Bend Radius | |||
| Short term (N) | Long term (N) | Short Term (N/100 mm) | Long Term (N/100 mm) | Static (mm) | Dynamic (mm) | |||
| 2 | 3.2 × 2.0 | 9.0 | 80 | 40 | 2000 | 1000 | 15 | 30 |
| Uncabled Fiber Macrobending Loss | G652D | G657A1 | G657B | |||
| Radius | 30 | 15 | 10 | 15 | 10 | 7.5 |
| Number of Turns | 100 | 10 | 1 | 10 | 1 | 1 |
| Max. at 1550 nm (dB) | – | 0.25 | 0.75 | 0.03 | 0.1 | 0.5 |
| Max. at 1625 nm (dB) | 0.1 | 1.0 | 1.5 | 0.1 | 0.2 | 1.0 |
