269223024-2018C02.1 - Cáp quang ngoài trời F8 có giáp thép bảo vệ loại đơn mốt 9/125 24 sợi quang, vỏ PE, G652D

  • Thương hiệu: PremiumLine Germany
  • Loại: Khác
  • SKU: 269223024-2018C02.1

Tại Công ty TNHH Thương Mại ITN: 82,200₫

Giá thị trường: 90,500₫

Tiết kiệm: 8,300₫ -9%

Figure 8, 9/125um G652DDescription:48 FibersThe fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel...
  • SHIP TOÀN QUỐC
    SHIP TOÀN QUỐC
    Theo thỏa thuận
  • HÀNG CHÍNH HÃNG
    HÀNG CHÍNH HÃNG
    Cam kết chính hãng 100%
    Phát hiện hàng giả đền 200%
  • ĐỔI TRẢ
    ĐỔI TRẢ
    Theo thỏa thuận
  • ĐẶT HÀNG - TƯ VÂN
    ĐẶT HÀNG - TƯ VÂN
    Hotline: 0329 275 527
    Báo giá dự án, đại lý:
    0908 555 468

Chia sẻ ngay

Figure 8, 9/125um G652D

Description:

48 Fibers

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.

Features:

  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber



Compliances:

144 Fibers

  • ITU-T G652D
  • ANSI/TIA 568-C.3
  • IEC-794
  • RoHS

Applications:

  • Suitable for direct buried and duct installation
  • Outside plant environments



Ordering information:

Part No.               269223xxx

Description         Fiber optic figure 8 cable, multi-tube, APL, SM9/125, PE

xxx, fiber count   004 / 006 / 008 / 012 / 024 / 036 / 048 / 072 / 096 / 144

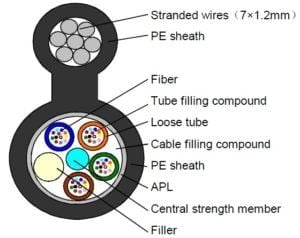

Structure & Environmental characteristics:

Loose TubeMaterialPBT
Peripheral Strength MemberMaterialSteel Wire / 7*1.2mm
WrappingMaterialAluminum Polyethylene Laminate
SheathMaterial / ColorPE / black
Operating temperature range-40oC to +70oC
Storage / transport temperature range-40oC to +70oC
Installation temperature range-40oC to +70oC



Mechanical characteristics:

Fiber CountTubesFillersFiber



Count

Outside



Diameter

(mm)

Cable Weight   (kg/km)Tensile LoadCrush Load
Short TermLong TermShort TermLong Term
(N)(N)(N)(N)
24C4165.6*9.0*16.616115006001000300



Figure 8 Fiber Optic Cable, 9/125um G652D

Number of Fibers1224487296144
Part No.269223012269223024269223048269223072269223096269223144
